Pan Depth: 5"
Pan Capacity: 6 Quarts (5.7 Liters)
System Capacity: 7 Quarts (6.6 Liters)
Description: 11" Long, 8-3/8" Wide, 5" Deep Rear Sump. 1-3/4" Front Depth.

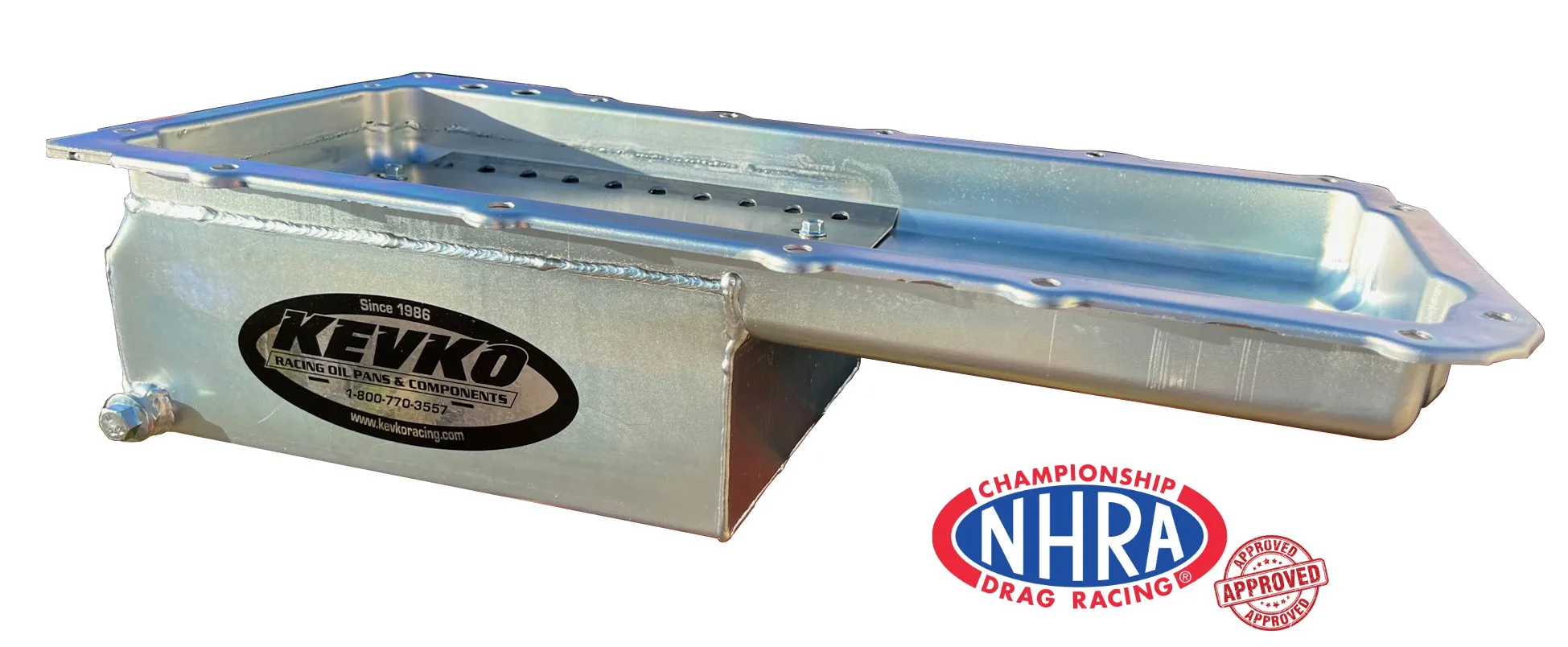

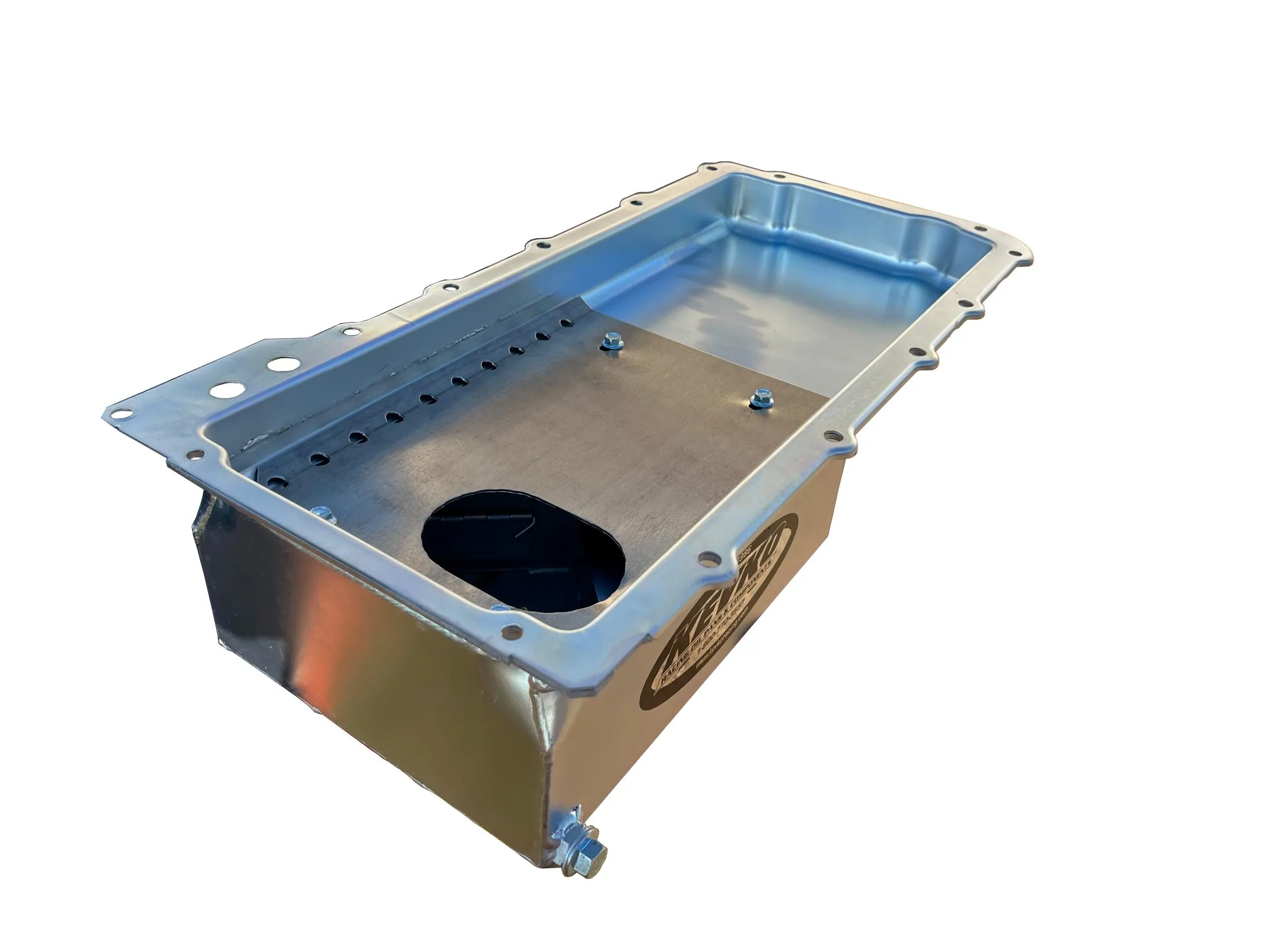

Our new F-Body oil pan has been strictly designed exclusively for Drag Racing. The Pan uses the new LS1008-1 pickup tube to reach to the rear of the oil pan for better oiling on hard launches. The oil pan then features trap doors to control oil on shutdown. Don't risk harming your engine with stock oil pans with no oil control!
Bolt kit andDip-stick are included with the purchase of the Pan. You will need to purchase Kevko pickup tubeseparate, as well as any other accessories listed below that you might need to complete your install.

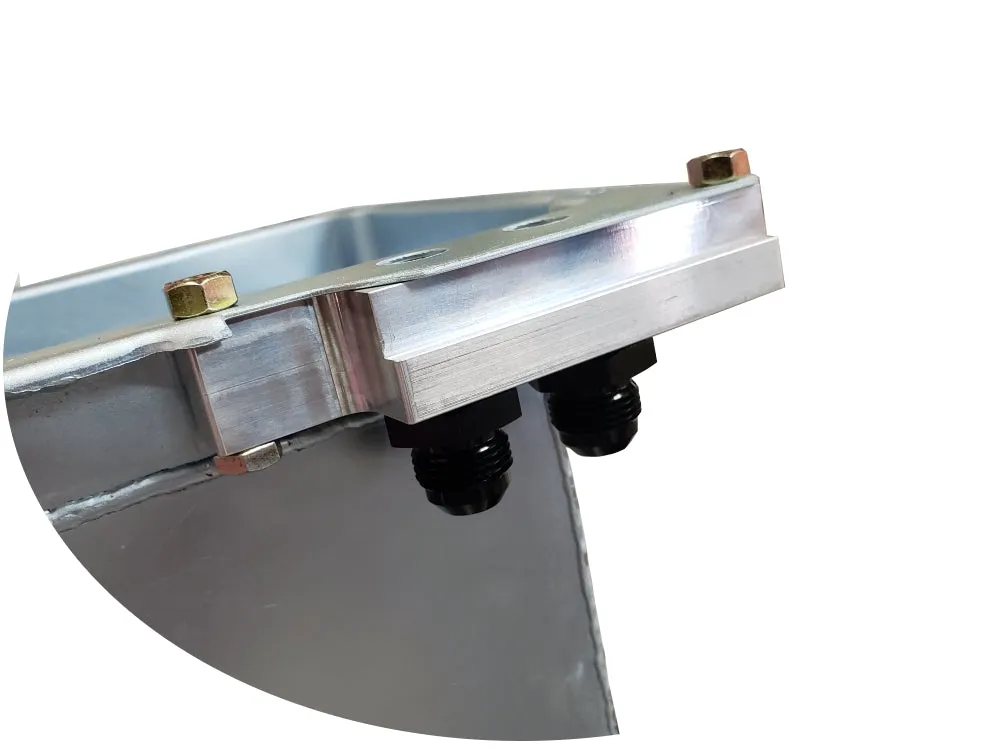

* Front Fitting is Pressure out (to filter), Rear Fitting is the Return line.
Optional Accessories
| Part Number | Description | |
| 5" Pickup Tube with O-Ring and Hold Down | ||

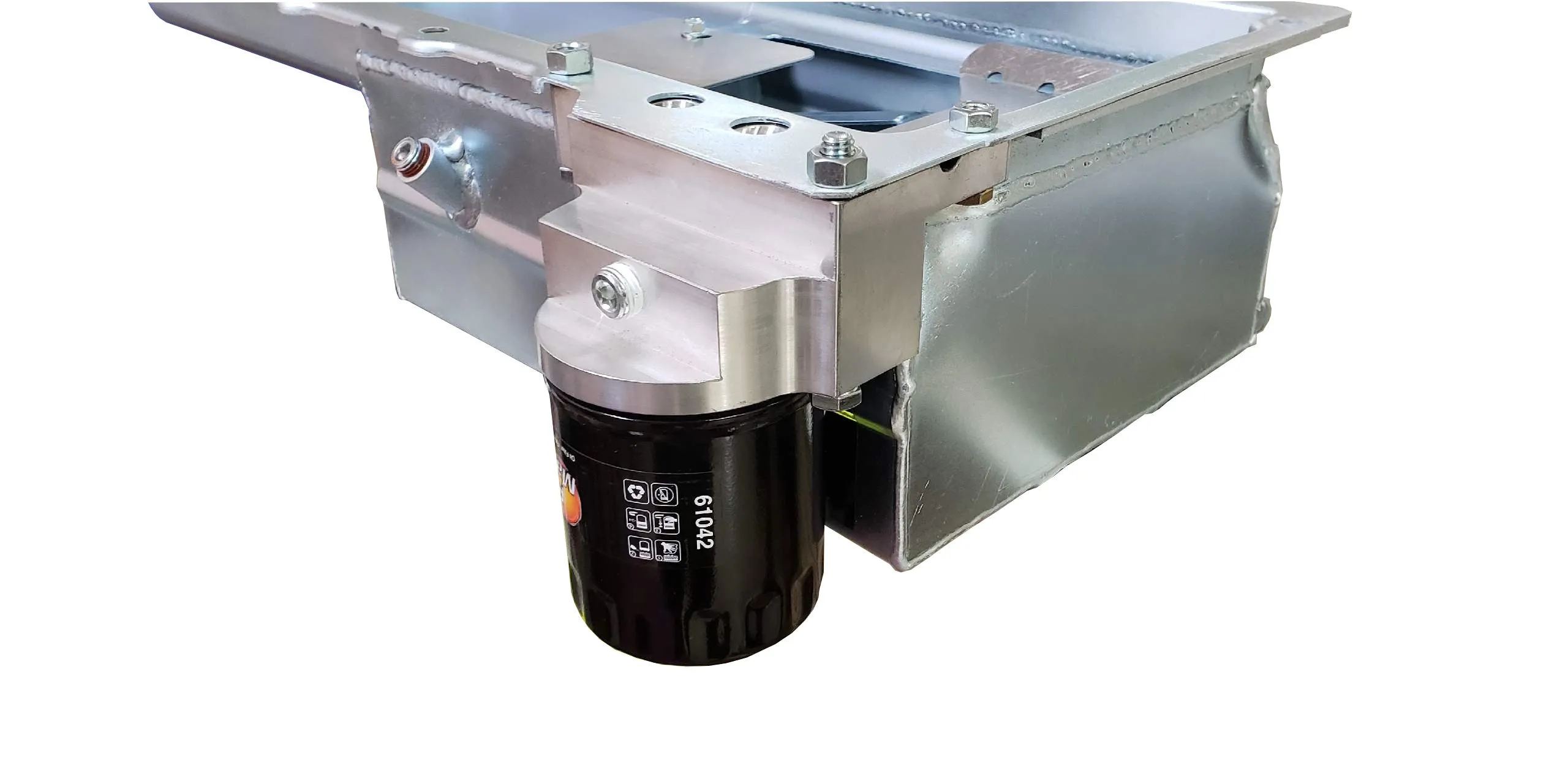

| Remote Filter Adapter | ||
| Wix Oil Filter | ||
| 10' Foot of Parker High Temp Hose | ||
| #10 Push Lock-Straight | ||
| #10 Push Lock-45 Degree | ||
| #10 Push Lock-90 Degree | ||
| LS Victor Reinz Oil Pan Gasket | ||
| LS Motor Mounts | ||
| Magnetic Drain Plug |
