Pan Depth: 5"
Pan Capacity: 9 Quarts (8.52 Liters)
System Capacity: 10 Quarts (9.46Liters)

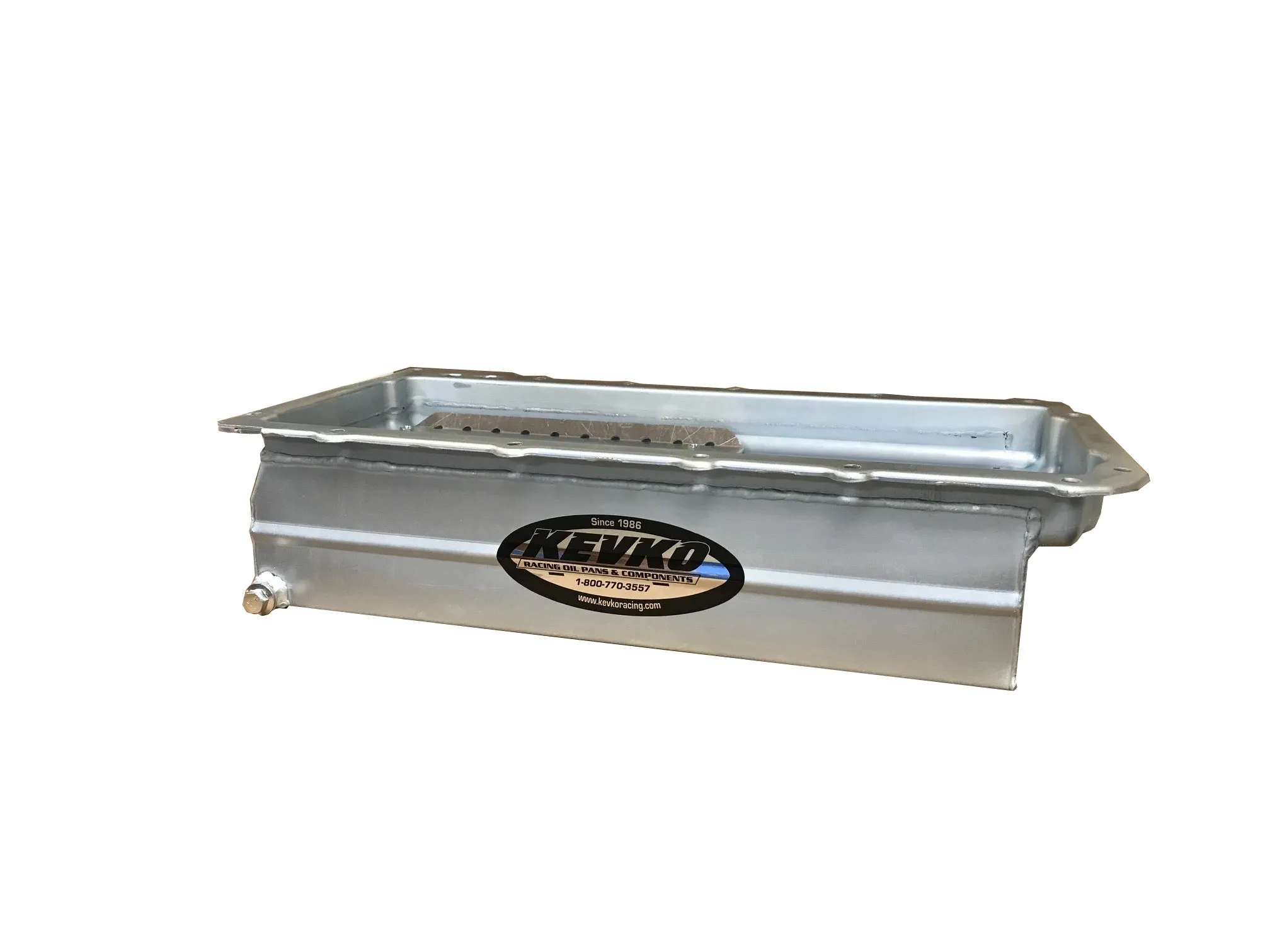

Description: 19.5" Long, 8-3/8" Wide, 5" Deep Rear Sump

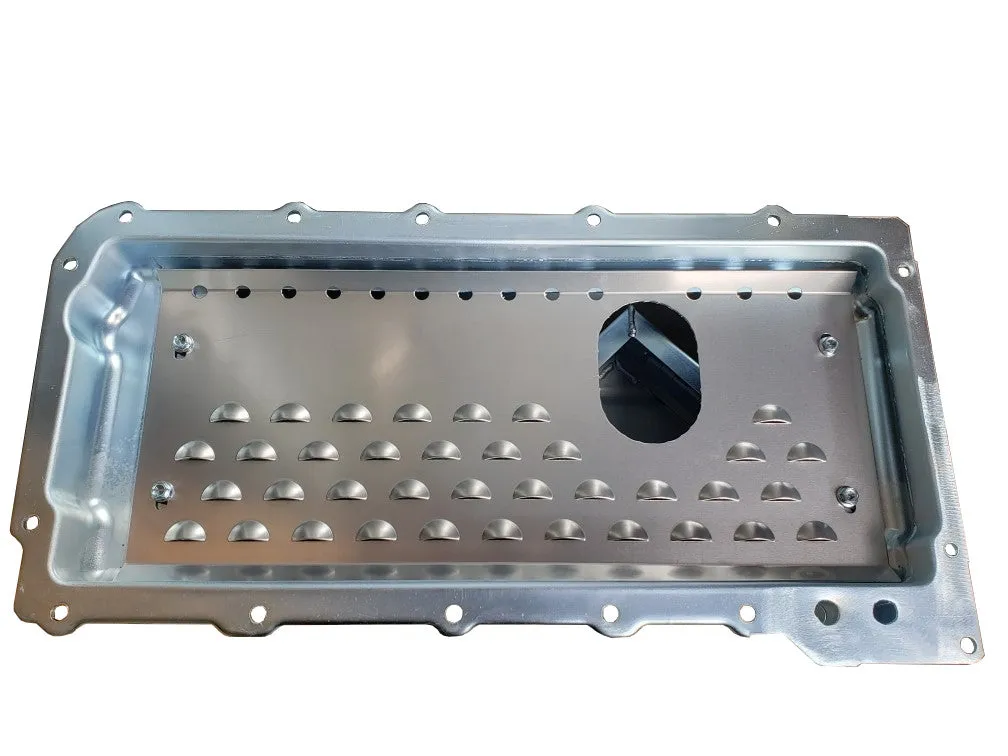

Designed for use in the Off-Road Racing world. Features a Diamond gate design that forces oil through the center assembly regardless the angle or direction of the vehicle, for excellent oil control to the pick-up tube. Must have for any Rock Crawler or Off Road LS project!
Bolt kit andDip-stick are included with the purchase of the Pan. You will need to purchase Kevko pickup tube separate, as well as any other accessories listed below that you might need to complete your install.

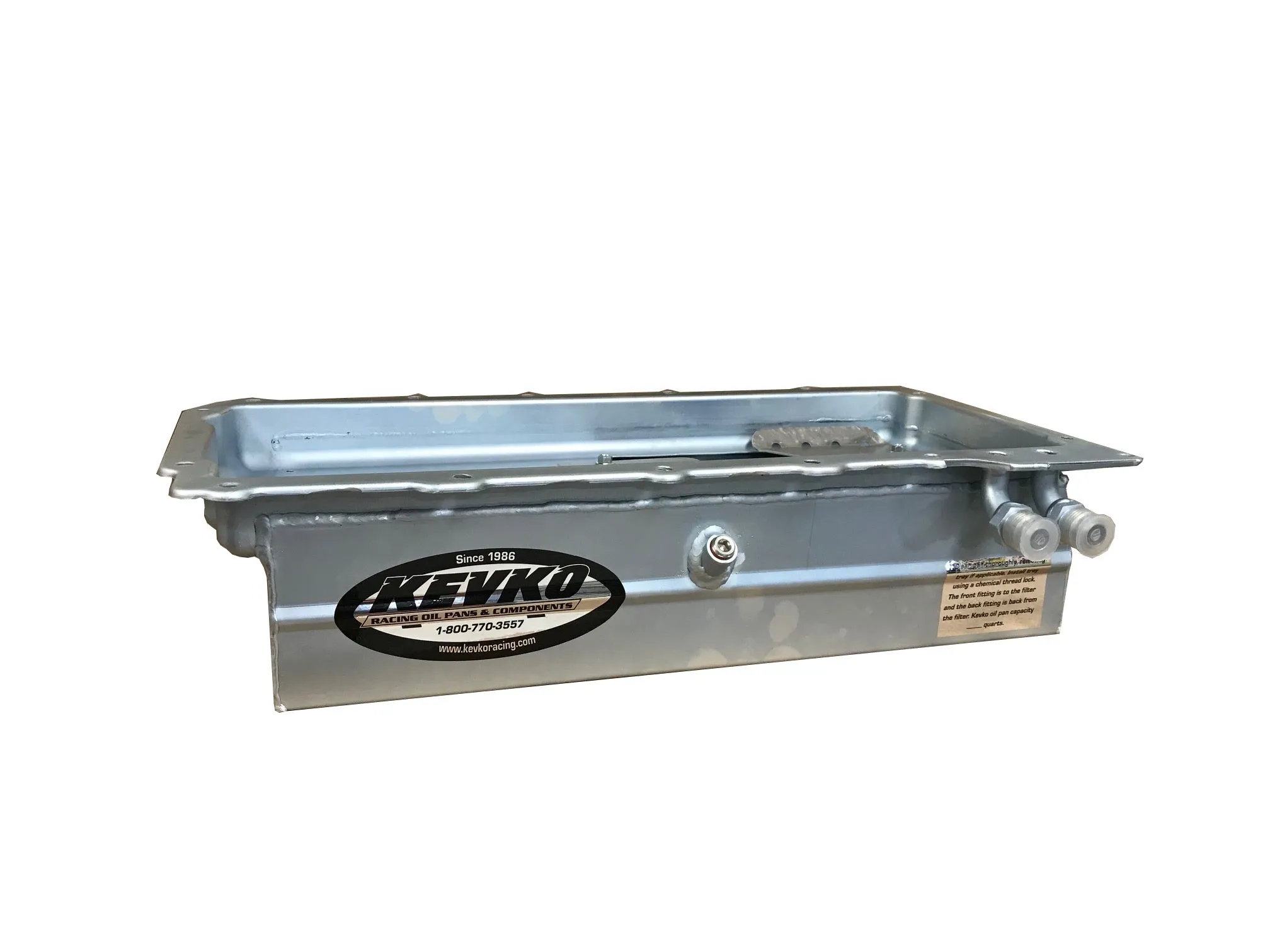

* Front Fitting is Pressure out (to filter), Rear Fitting is the Return line.
Optional Accessories
| Part Number | Description | |
| 5" Pickup Tube With New O-ring | ||
| Remote Filter Adapter | ||
| Wix Oil Filter | ||
| 10' Foot of Parker High Temp Hose | ||
| #10 Push Lock-Straight | ||
| #10 Push Lock-45 Degree | ||
| #10 Push Lock-90 Degree | ||
| LS Victor Reinz Oil Pan Gasket | ||
| LS Motor Mounts | ||
| Magnetic Drain Plug |
