Pan Depth: 6.5"
Pan Capacity: 7.5 Quarts (5.7 Liters)
System Capacity: 8.5 Quarts (6.6 Liters)

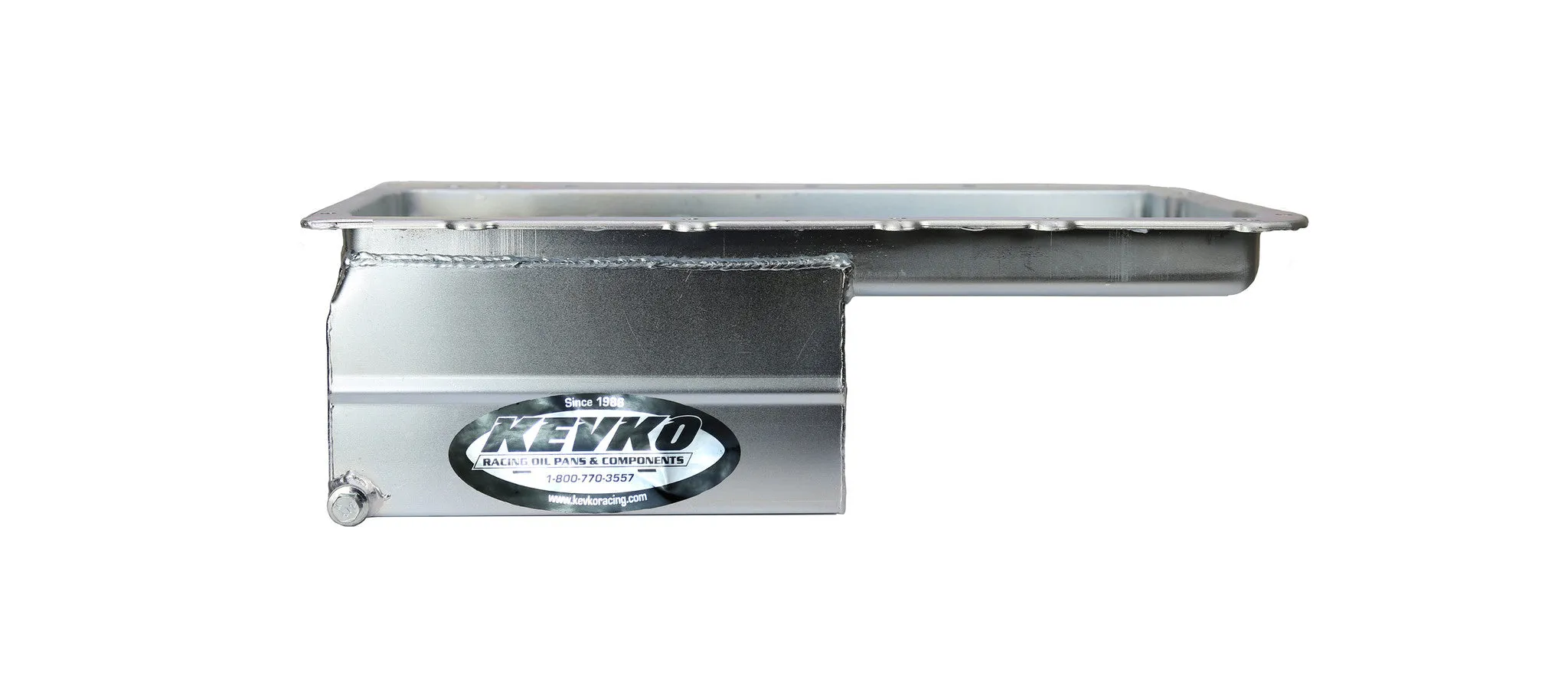

Description: 11" Long, 8-3/8" Wide, 6.5" Deep Rear Sump. 1-3/4" Front Depth.
Designed for the F-Body but primarily used in the Off-Road Racing world. Features a Diamond gate design that forces oil through the center assembly regardless the angle or direction of the vehicle, for excellent oil control to the pick-up tube. Must have for any Rock Crawler or Off Road LS project!
Bolt kit andare included with the purchase of the Pan. You will need to purchase a Kevko pickup tube, as well as any other accessories listed below that you might need to complete your install.

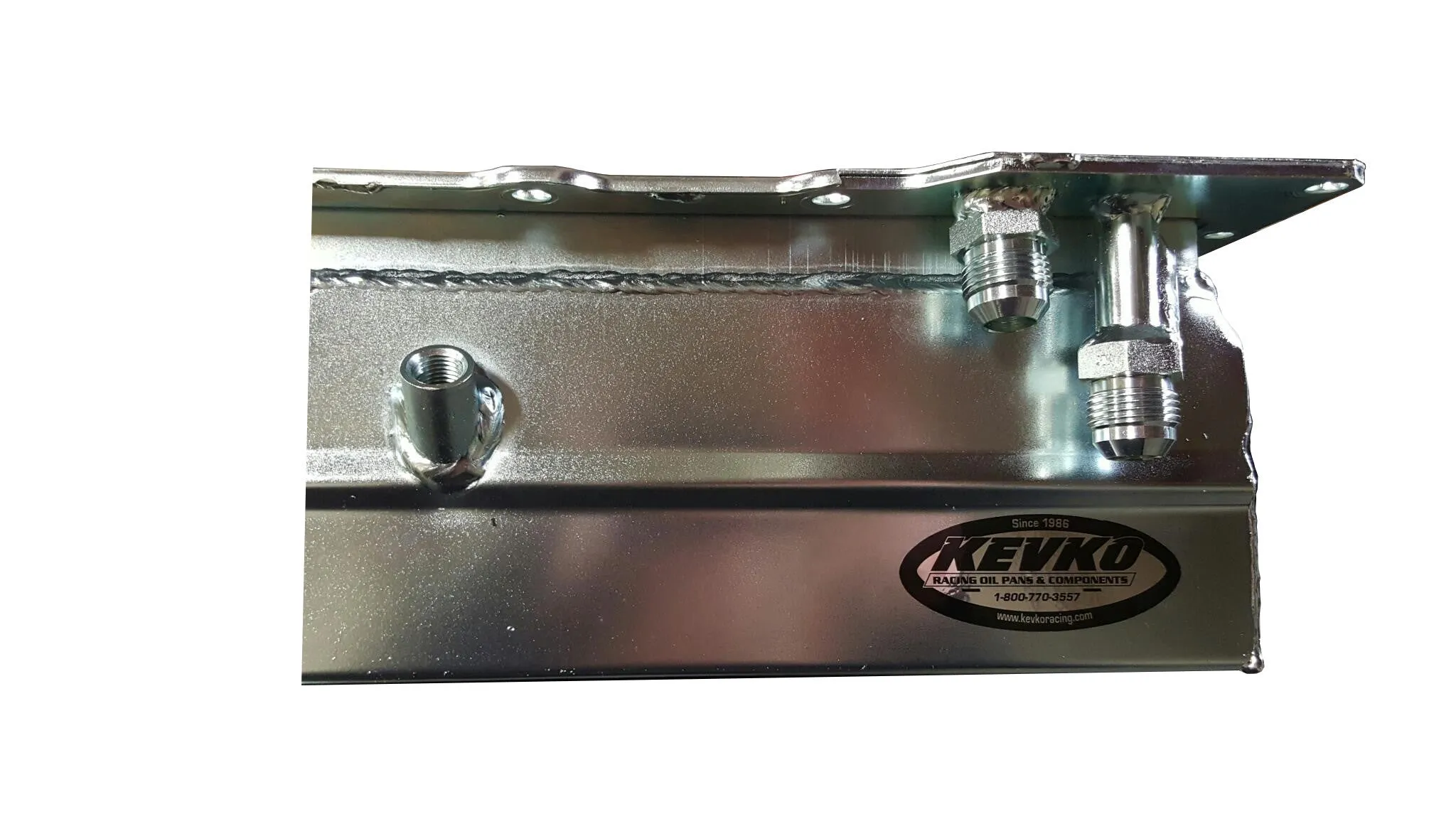

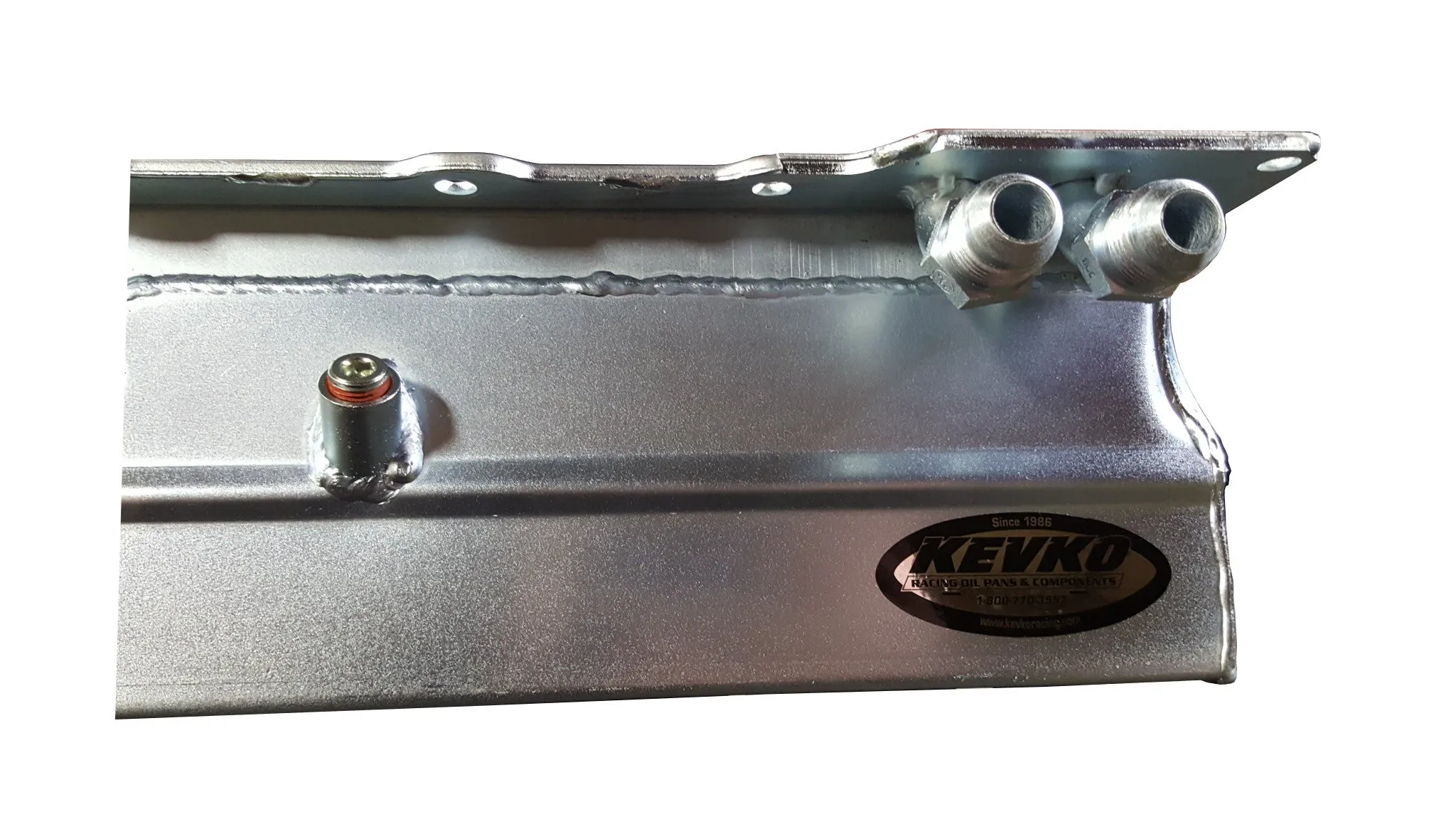

* Front Fitting is Pressure out (to filter), Rear Fitting is the Return line.
Optional Accessories
| Part Number | Description | |
| 6.5" Pickup Tube With New O-ring | ||

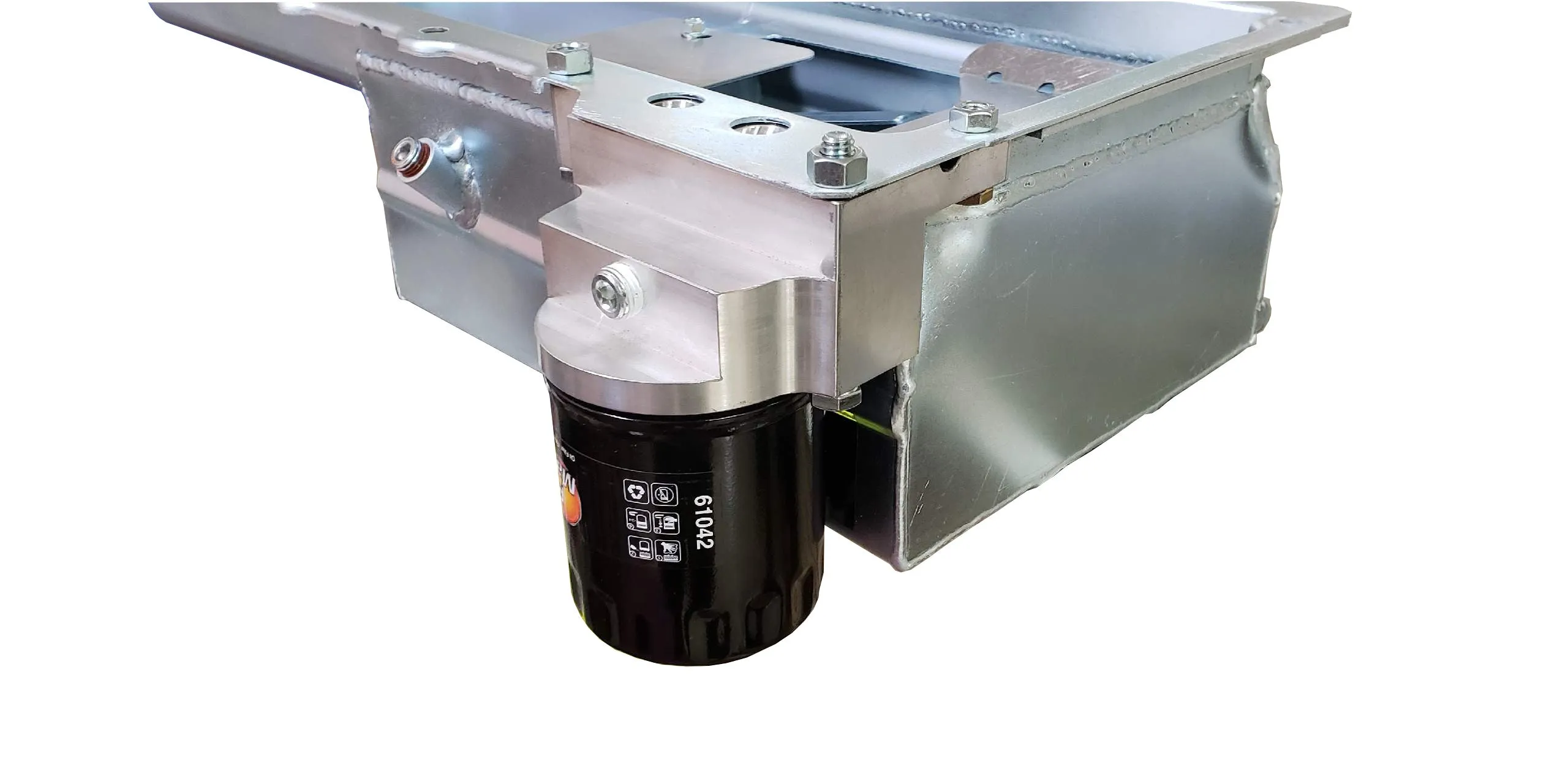

| Remote Filter Adapter | ||
| Wix Oil Filter | ||
| 10' Foot of Parker High Temp Hose | ||
| #10 Push Lock-Straight | ||
| #10 Push Lock-45 Degree | ||
| #10 Push Lock-90 Degree | ||
| LS Victor Reinz Oil Pan Gasket | ||
| LS Motor Mounts | ||
| Magnetic Drain Plug |
