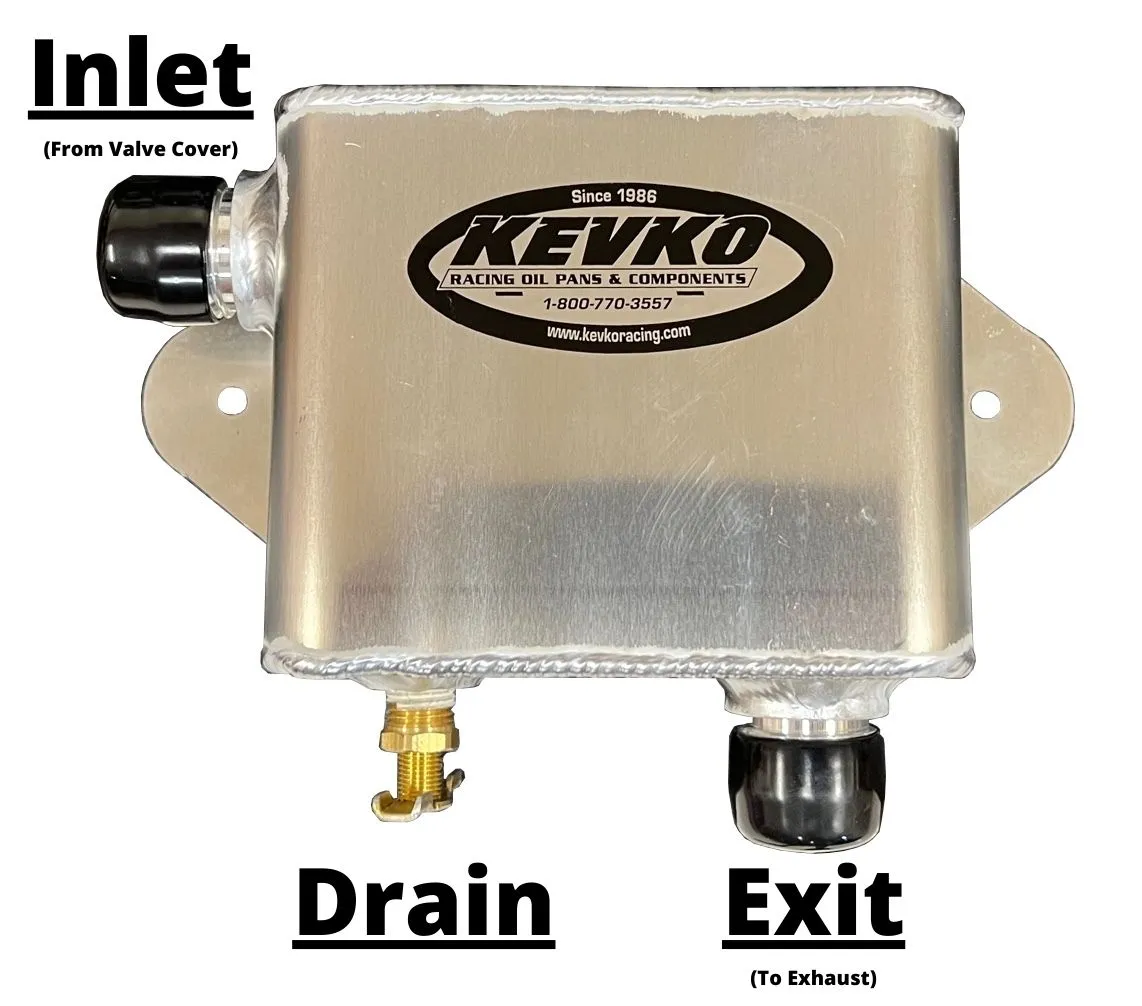

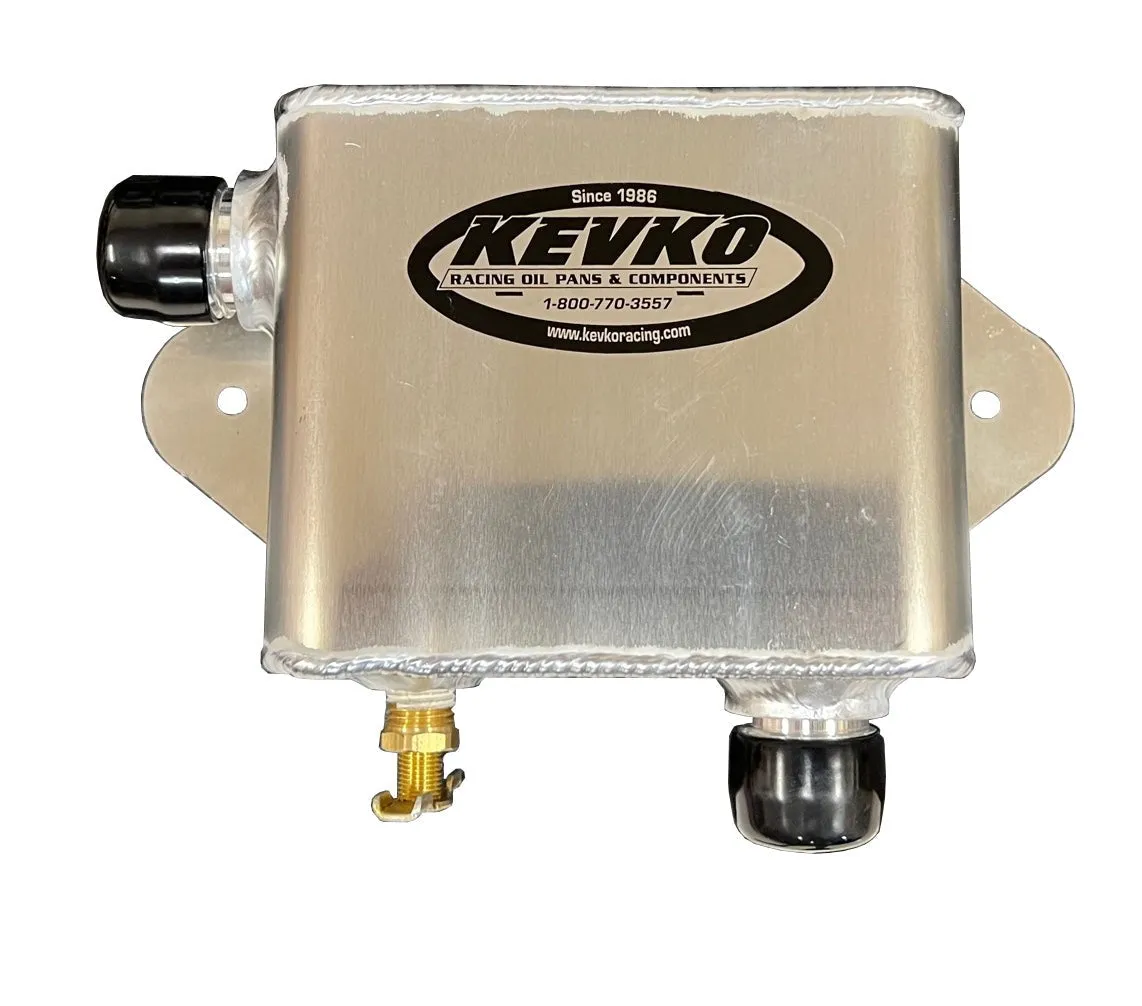

This tank allows you to plumb your evac system to your exhaust eliminating the chance of pulling engine oil out of your motor causing the header/exhaust to smoke. The bottom fitting going to the exhaust has a stanchion tube that goes up inside the tank.

Inlet and Exit #12 AN fittings with 1/4" NPT Petcock drain valve.

The tank is 5” wide by 4” tall by 2-5/8” deep. It is 8” to the outside of the two mounting tabs. The two mounting holes are 6.5” apart.

*Custom built tanks are also available for any application you may have. Contact us at (800) 770 3557 for more info.
